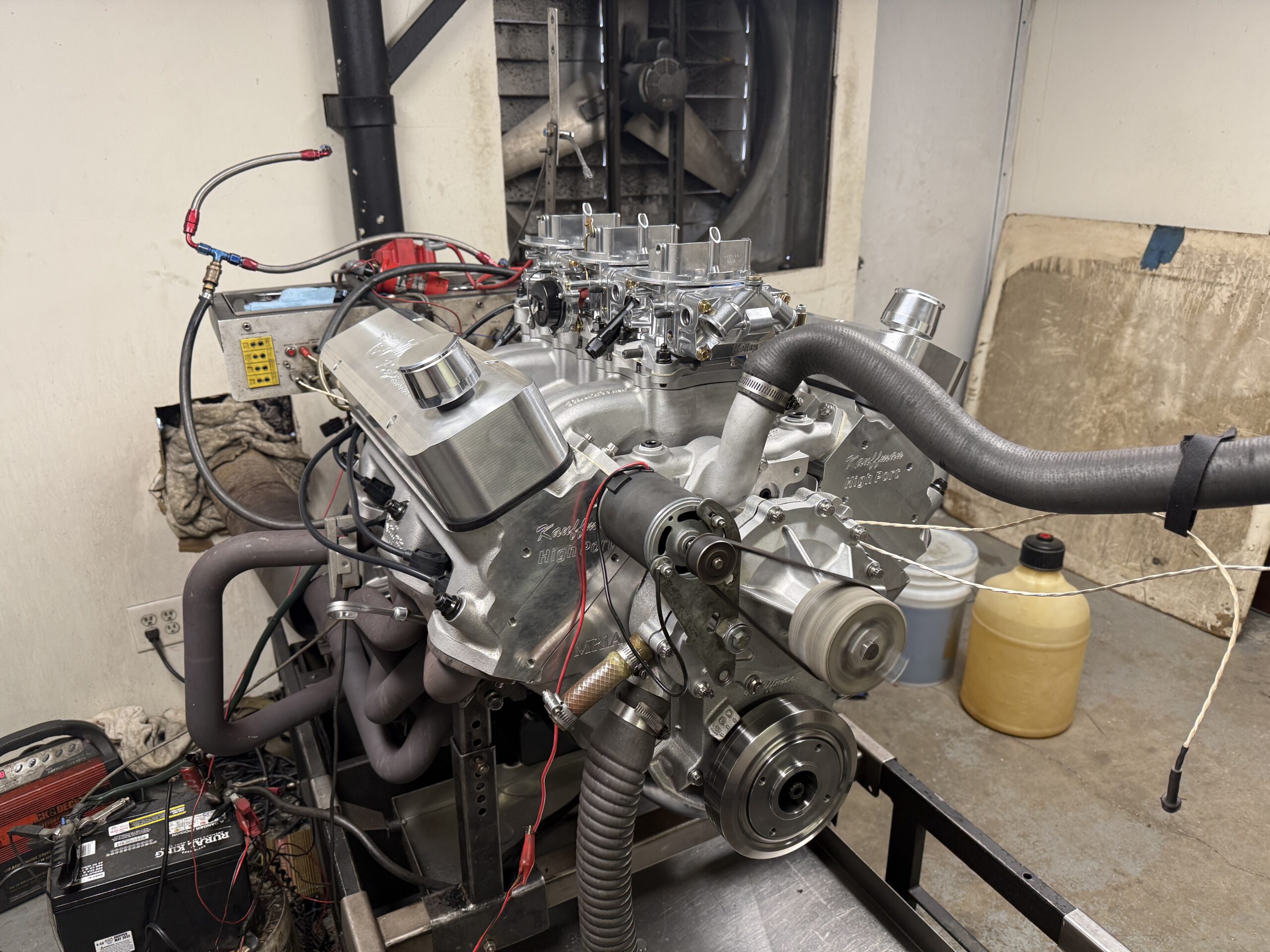

A restoration shop came to us wanting to build a strong reliable combo with KILLER street manners for a 1966 GTO they were doing. They wanted to use a Kauffman Performance MR-1A aluminum aftermarket block for the foundation of the build to make a pump gas friendly 10.5 to 1 compression ratio. We opted to hit the power goals using a set of BONE STOCK 80cc KRE High Port Heads. The customer will be putting EFI on this combo so we thought it would be fun to dyno the engine with one of our in-house Holley 2300 Tri-power setup. Should be a VERY fun ride!
The engine uses the following components:
- Kauffman Performance MR-1A aluminum Pontiac block 4.250 bore
- Eagle 4.25″ stroke crank forged
- 80cc KRE High Port heads – BONE STOCK
- KRE Trade Wind Tri-Fi intake manifold
- Eagle 6.8 rods
- Moroso 7 qt Oil pan
- Melling Oil pump with TIP SD-Oil plate installed – Pump blueprinted
- Total Seal Rings file fit
- Federal Mogul Rod and Main bearings
- Ross 4.250 bore pistons with custom dish for 10.5 to 1 CR
- Druabond Cam bearings
- Trend Pushrods
- Custom Ground Tin Indian Performance Hyd Roller Camshaft by Comp Cams
- Johnson Short Travel Hyd Roller Lifters
- Tin Indian Performance Complete Gasket Set with TIP-RM300 Viton ® rear main seal
- Cometic head gaskets
- MSD Billet Distributor
- Taylor Wires
- Scorpion 1.6 Ford rockers
- NGK Spark Plugs
- ARP Head Studs
- Flow Kooler Water Pump
- KRE Timing Cover
- Pro Race Balancer
- In-house Holley 2300 500 cfm Tri-power setup
- Tin Indian Performance Tripower fuel pump blockoff kit
- Engine balanced and blueprinted
- Dyno Tuned before delivery
